the overall laboratory renovation project

(1) OverallLaboratory definition

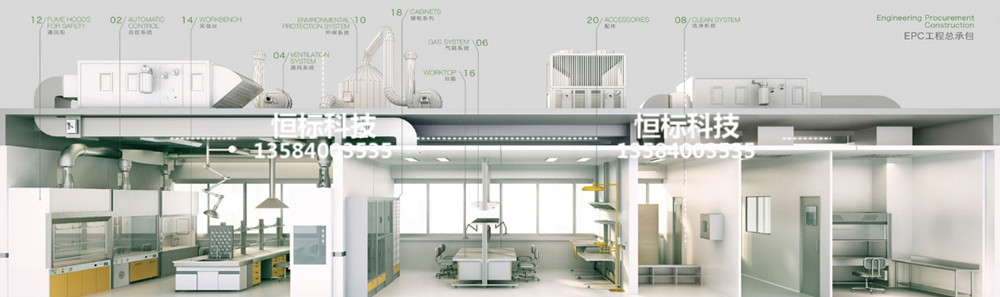

The whole laboratory is a comprehensive laboratory system (such as textile testing center - sample room, washing room, drying room, sun room, rating room, constant temperature and humidity room, chemical analysis room, drug room, liquid phase gas phase). Combined room, cylinder room, etc.). Whether it is a new construction, expansion, or reconstruction project, it is not simply to purchase equipment and experimental furniture, but also to consider the overall planning, rational layout, graphic design and long-term reservation of the laboratory, as well as the routine laboratory modern style. Specialized construction and special laboratory (temperature and humidity or cleanliness or aseptic or explosion-proof or anti-virus required) professional construction, meet the actual needs of the laboratory, strong and weak electricity, water supply and drainage, test furniture, laboratory gas supply, ventilation, air conditioning Infrastructure, basic conditions such as air purification, intelligent control, safety measures, and environmental protection.


(II) Characteristics of the overall laboratory layout of Hengbiao design and planning
Hengbiao – BIM Lab Model specializes in designing intelligent, integrated labs for customers in different industries.It can meet the requirements of CNAS, CMA and other certifications for the rational layout of laboratories and the GLP (Good Laboratory Practice) requirements of modern laboratories. Safe, healthy, energy-saving, environmentally friendly, user-friendly, intelligent, flexible. A new laboratory model is emerging. A laboratory model that meets the needs of current experiments and can adapt to future development is highlighting future trends in the process of replacing old and new laboratories. The overall laboratory of Hengbiao design planning is being used during use. Old customers are highly praised.
1. Reasonable sample transfer and laboratory function positioning
To assign a laboratory area, first consider the workflow, sample transport and circulation, and biosafety factors. The laboratory preparation plan generally cooperates in the form of reports, mainly focusing on the user's overall construction budget during the laboratory construction process, the overall design of the laboratory, the overall construction of the laboratory, the laboratory function positioning, and the experiment. Room equipment selection, laboratory comprehensive equipment, laboratory operation management, laboratory technology level, laboratory qualification certification, etc.


2, flexibility
It is extremely important that laboratory design can adapt to the needs of future developments.


3, security
The design and size of the laboratory should take into account safety, meet the building rules for emergency removal and evacuation, and provide safety equipment for each laboratory. An emergency eye wash and shower room should be provided within 30 meters of the hazardous chemical reagent. A hand basin should be installed in all laboratories and in direct contact with contaminants, and the sink should be located at the exit. The sink should be independent and cannot be mixed with contaminant treatment and experimentation.


4. Set up a smoke hood and safety facilities
Any safety cover should be placed as far as possible from the exit to comply with the principle that harmful experiments are away from the main passage. The decoration laboratory requires materials to be moisture-proof, corrosion-resistant and non-fading; it is required to fully consider that the walls, ceilings and floors of the laboratory should be smooth, easy to clean, water-tight, resistant to chemicals and disinfectants; the tightness of doors and windows is recommended to use push-pull Doors, all laboratories require no threshold; terrazzo or non-slip floor tiles are recommended on the ground;


5. Waterproof and corrosion resistance of the test bench

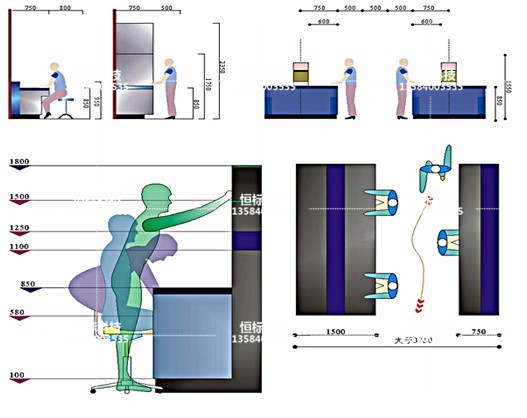

The laboratory table is arranged according to the layout of the equipment, and the number of sockets is arranged according to the layout of the equipment. The experimental console is equipped with a locker type and a countertop design medicine rack. The design of the table should be considered for convenient experimental operation, such as the double concave below the table to accommodate the sitting posture experimenter. Legs, experimental tables set up two sets of multi-function sockets every 1m (or each set of experimental stations). The furniture in the laboratory should be firm, easy to clean, and there should be a certain gap between all kinds of furniture and equipment. There should be a table (rack) for placing biological waste containers.


(III) Laboratory professional supporting technical service projects that can be provided by Hengbiao
